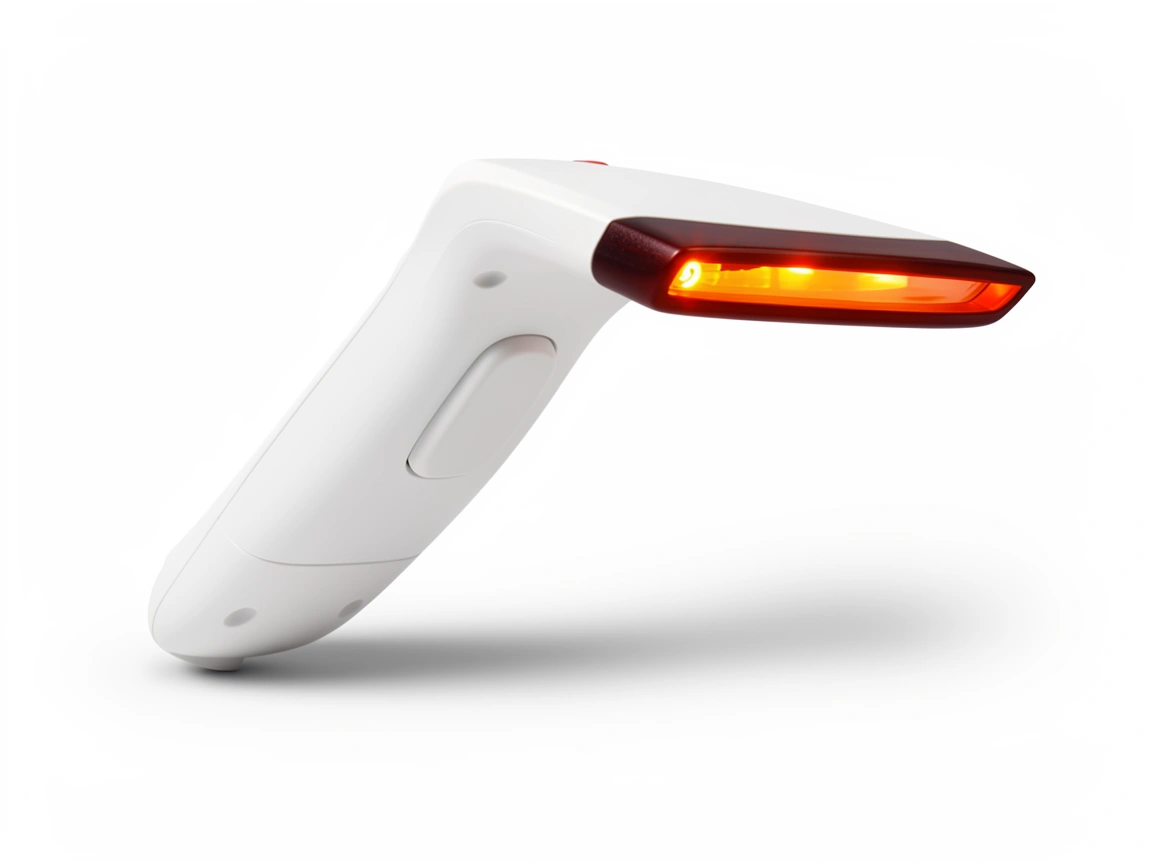

The USB barcode reader provides an easy and fast method of data entry and storage for the SpectraAlyzer instruments. It supports handhold scanning of barcodes.
This barcode reader combines the advantage of simplified handling of sample name transfer and low transfer error rates.
Bar-Code Reader
| Power supply DC 5 V | |
| Power source Host external supply | |
| ESD protection 15 KV | |
| Laser class National laser safety standard class 1 | |
| Depth of field 3-9 cm (0.1 mm bar width); 3.5-45 cm (0.3 mm bar width) | |
| Scanning width 5 cm – 30 cm | |
| Decoding speed 160 times/sec | |
| Resolution Minimum 0.1 mm (4 mils) | |
| Decoding capability EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN 128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI | |
| Prompt mode Buzzer, indicator light | |
| Interface Standard 2.0 USB interface | |
| Trigger mode Manual trigger, continuous scanning | |
| Dimensions Length x weight x height: 9 cm x 7 cm x 16 cm | |
| Weight Approx. 120 g (excluding wire) | |
| Interface type USB | |
| Material ABS+PC+TPE | |
| Operating temperature 0-45 °C | |
| Storage temperature 20-60 °C | |
| Operating humidity 5-95 % | |
| Seismic capacity By 1.5 m free fall test | |
| Language Support for multiple languages |
