AutoSampler 180

Liquid handling

Product Description

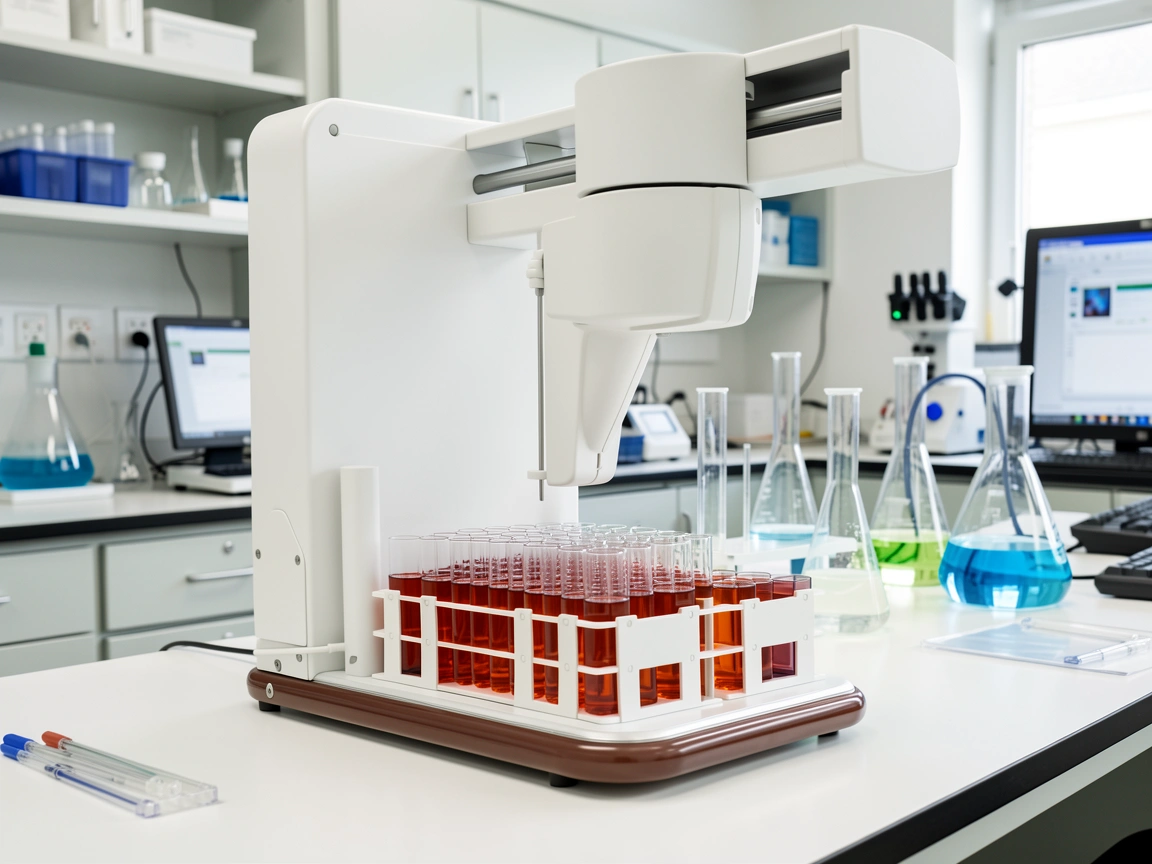

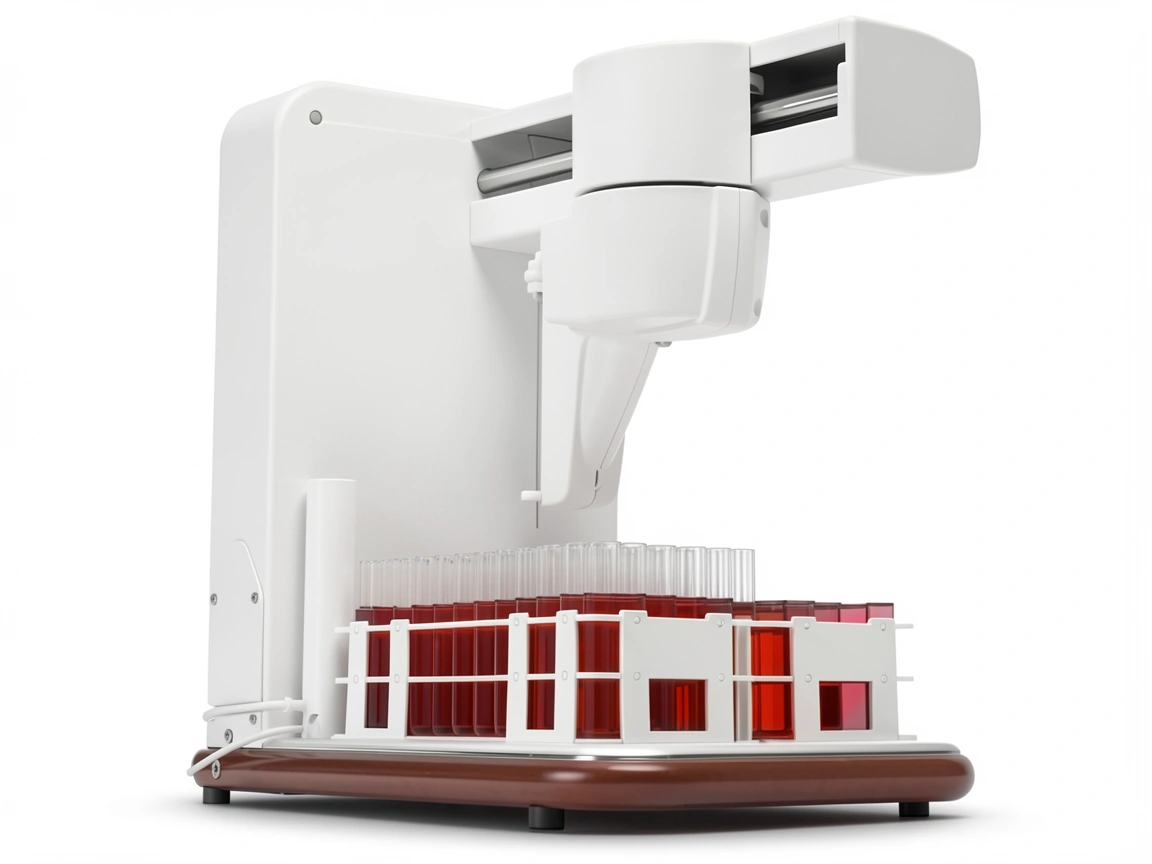

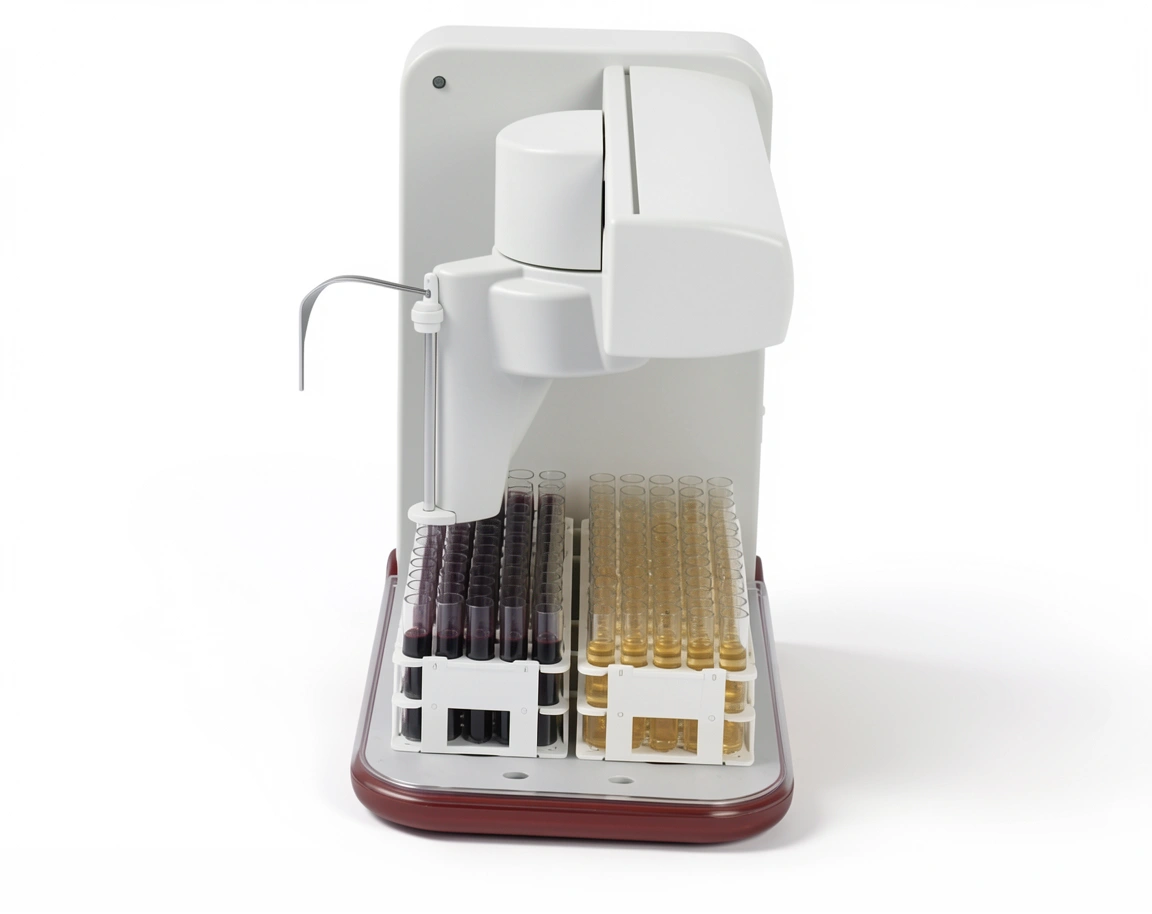

AutoSampler 180 is coming as 2 sample rack version. It is the biggest autosampler in ZEUTEC’s accessory range., which is a compact workhorse for those looking for an autosampler to handle typically 100 – 180 samples in one run.

  • Compact footprint which maximises available area for samples and standards.
  • Exceptional reliability through proven mechanical design.
  • Probe travel confined within the boundaries of the autosampler.
  • Solid robust design.
  • The autosampler can be easily transported around the lab.
  • High chemical resistance to acids and select solvents.
  • To combine the AutoSampler 180 with the SpectraAlyzer 2.0 both devices has to be operated in remote mode by means of the Application worx software.

Technical data

AutoSampler 180

Footprint 415 mm x 265 mm (16.3” x 10.6”)
Height 435 mm (17.1”)
Net weight 12 kg
Shipping weight 14 kg (with accessories)
Sample racks 90 position x 13 mm OD 60 position x 16 mm OD 40 position x 20 mm OD 24 position x 25 mm OD 21 position x 30 mm OD
Standard rack locations 1
Standard rack options 5 position x 30 mm OD 10 position x 17 mm OD
Maximum vial height 125 mm
Communication 1 x RS232, 1 x RS485, 1 x relay contact, USB optional
Power input 85 -264 VAC, 49 – 61 Hz, 1.2 A
Chassis color Off-white

Files

Auto_sampler_180_EN PDF • 0.24 MB Download
